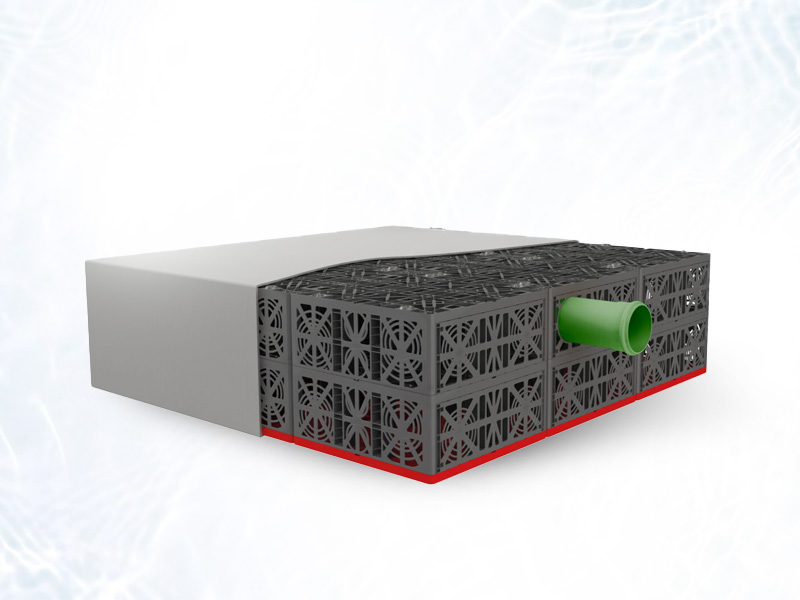

Ecobloc Inspect Flex

Universal use:

  • Stormwater Infiltration

  • Stormwater Retention

  • Rainwater Storage

Twice the volume per truck

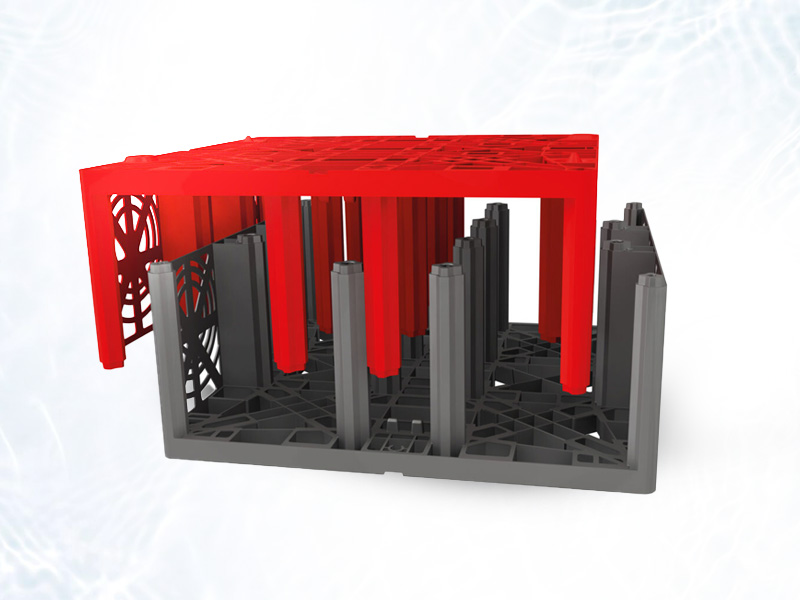

To save space during transport, two EcoBloc Inspect flex modules are stacked one inside the other. This halves transport costs and CO2 emissions.

Easy to install

GRAF EcoBloc Inspect flex modules are easy to transport and install. The modular system structure requires few accessories.

Easy to inspect

The standard inspection channel allows the entire infiltration system to be effectively monitored. The ability of the EcoBloc Inspect system allow access by inspection cameras that are commonly found on the market. This has been confirmed, by several independent testing authorities.

Certified by

  • DIBt, BBA , QB Assainissement, SIRIM (MALAYSIA), SIRIM ECO-LABEL, MYHIJAU MALAYSIA

BBA Agrément Certificate Number 15/5200 for GRAF EcoBloc Inspect flex

Can be cleanded by high pressure jetting

GRAF EcoBloc Inspect system can be easily cleaned by high pressure jetting.

Service life of over 50 years

A durable product design ensures sustainability. The GRAF EcoBloc system and the Vario 800 flex shaft system is designed for a service life of over 50 years.

Highly flexible

Each EcoBloc Inspect flex module has a volume of 205 l, a area of 800 x 800 mm and a height of 320 mm. The system size and loadbearing can be adjusted individually to suit requirements of traffic and of non-traffic area.

Lorry-bearing

The GRAF EcoBloc Inspect has a heavy-duty lorry-bearing capacity of 60 tons with a 800 mm earth covering.

Installation depth of up to 5 metres

Even under very heavy loads, GRAF EcoBloc Inspect system can be installed at a depth of up to 5 metres. This means that up to 14 layers are possible.

Connection up to DN 200

Large infiltration volumes require large pipe cross-sections. This isn‘t a problem for GRAF EcoBloc Inspect: it has DN 110, 160 and 200 connections on all sides. DN 100 connections are positioned eccentrically at the side for complete deaeration.

Designed for decades of use

A durable product design ensures sustainability.

Built to offer double safety, the GRAF EcoBloc Inspect is designed for a service

Easy Access, Total Control.

The GRAF EcoBloc Inspect system is designed to have high rate of infiltration and barrierfree inspection.

The Graf EcoBloc Inspect Flex isn’t just smart—it’s serviceable. Designed with built-in access for easy inspection and cleaning, it ensures your stormwater system stays efficient, compliant, and low-maintenance for years to come.

Easy Access, Total Control.

The GRAF EcoBloc Inspect system is designed to have high rate of infiltration and barrierfree inspection.

The Graf EcoBloc Inspect Flex isn’t just smart—it’s serviceable. Designed with built-in access for easy inspection and cleaning, it ensures your stormwater system stays efficient, compliant, and low-maintenance for years to come.

100% Recycled Plastic

Use collected waste plastic to recycle and convert it into PP Plastic tank, we reduce on carbon foot paint as compared to any other PP Plastic tanks suppliers and Reinforced Concrete.

Low Environmental Impact

Without the needs to use concrete, the mining activities, the chemical used to produce cement and the pollution to the surround environment are reduced.
